BOA WINCH® Handles

An ergonomic ratchet handle that secures loads safely.

A wise choice

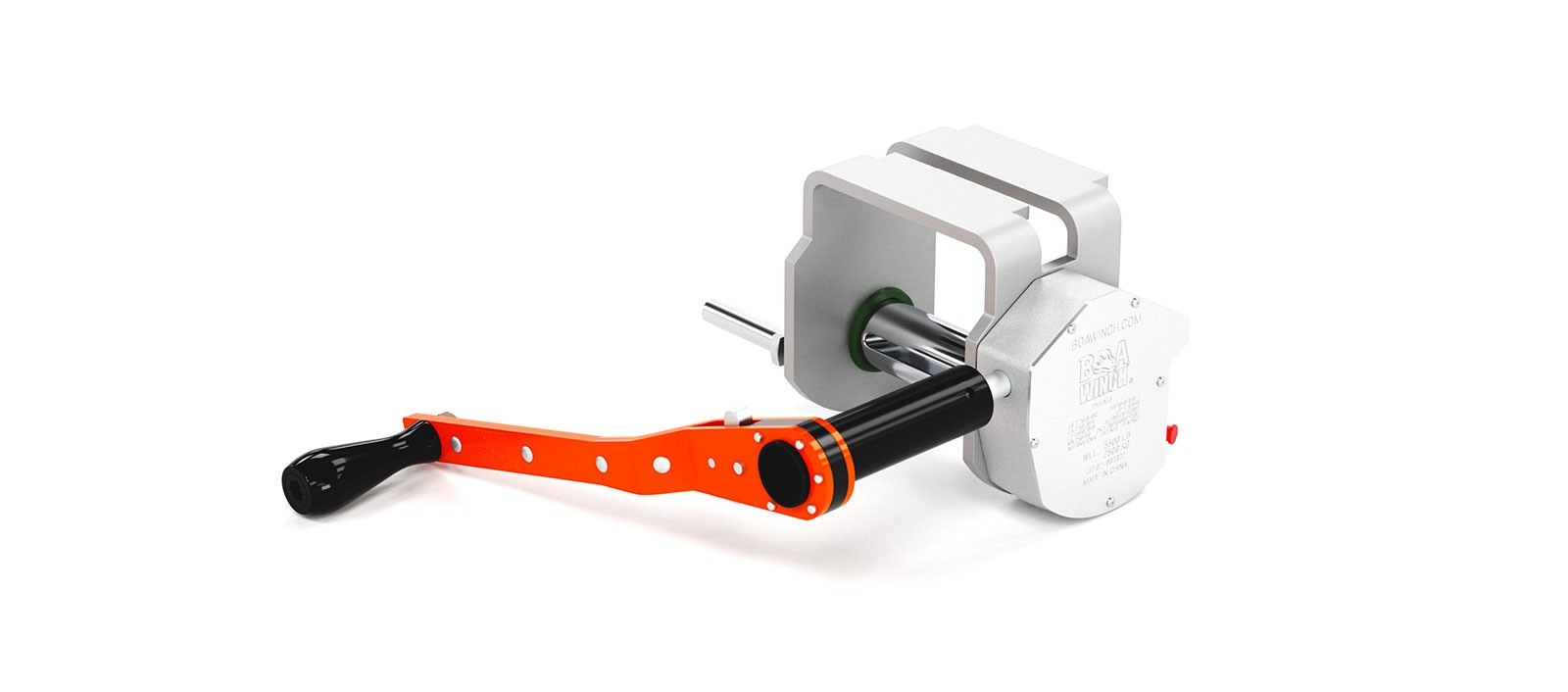

The BOA WINCH® handle was developed to allow the user to work in complete safety. This ergonomic ratchet handle allows users to easily tighten or loosen the load in any situation without wasting time and it requires little clearance to use.

Compared to traditional tension bars, the use of the BOA WINCH® ratchet handle eliminates the risk of accidents related slackening of the strap or tension bar kickback.

The use of the BOA WINCH® ratchet handle allows more than 90% of the normal population, men and women, to reach a tension on the strap of 1500 lb (680 kg) whereas a traditional winch and its bar allows only a very small percentage (less than 20%) of the normal population, men and women, to reach a strap tightening force of 1500 lb (680 kg).

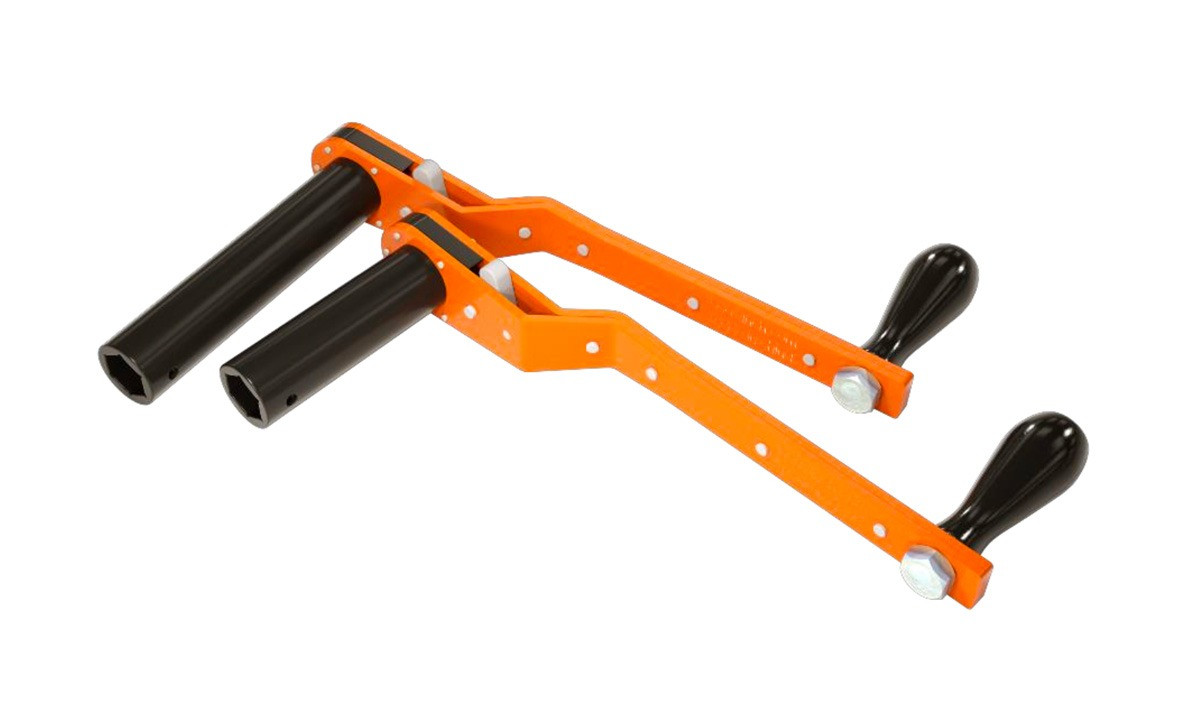

The BOA WINCH® handle is available in two socket lengths. A standard 4” (10.2 cm) socket or a deep 6” (15.3 cm) socket that allows additional clearance when used on a sliding tarp trailer, among other things. The BOA WINCH®

Deux manivelles

Technical specifications

MODELS BOA-RH-O-12 BOA-DRH-O-12

LENGTH
       INCHES
       CENTIMETERS


12.0
30,5


12.0
30,5

SOCKET DEPTH
       INCHES
       CENTIMETERS


4.0
10,2


6.0
15,3

 SOCKET DIAMETER
       INCHES
       CENTIMETERS


1.0
2,5


1.0
2,5

WEIGHT
       POUNDS
       KILOGRAMS


3.8
1,7


4.0
1,8

COLOR

ORANGE

COMPATIBLE WITH BOA WINCH® EXTENSIONS

YES
