SAFER
FASTER
EASIER

BOA WINCH®

The most complete tiedown winch

The BOA WINCH® advantageously replaces traditional winch systems. Whether you are a business manager, health and safety manager, owner of a large fleet or an owner operator, the BOA WINCH® will meet your needs by offering you a multitude of benefits.

A BENEFICIAL investment: using BOA WINCH® allows you to reduce the time spent securing your load by 30% to 40% while eliminating the risk of accidents related to load securing operations.

Unmatched benefits

Secure load tiedown

  • Eliminates traditional winch bar accidents.
  • Easy to use for male or female operators.
  • Minimum effort required for maximum tension.
  • Self-locking system.

Many versatile uses

  • Can be used with straps, chains or steel cables.
  • Adaptable to most trailers.
  • Adaptable to trucks, trains and other modes of transportation.

Built with quality

  • Nylon bushings for easy rolling.
  • Many stainless steel parts.
  • Anti-corrosion surface treatment.

Easier to use the winch and the handle

  • Perfect for use in tight spaces.
  • Perfectly adapted for drop frame trailers.
  • More efficient for low loads.
  • Safe and ergonomic 12" ratchet handle.
  • Hydraulic grease fitting for maintenance.

Enhanced precision and speed

  • Reduces from 30% to 40% the time of the tiedown maneuver.
  • Precise tension thanks to the worm gear.
  • Tension adapted to all types of loads.
  • Uniform tension on straps, regardless of the load.
  • Quick-rewind side handle.
  • Pre-tightening can be performed with a drill (20 volts or less).

Many versatile uses

One product… 3 ways to tiedown:

The BOA WINCH® is particularly distinguished by its versatility; it allows you to use straps, chains or steel cables with a single product according to your needs.

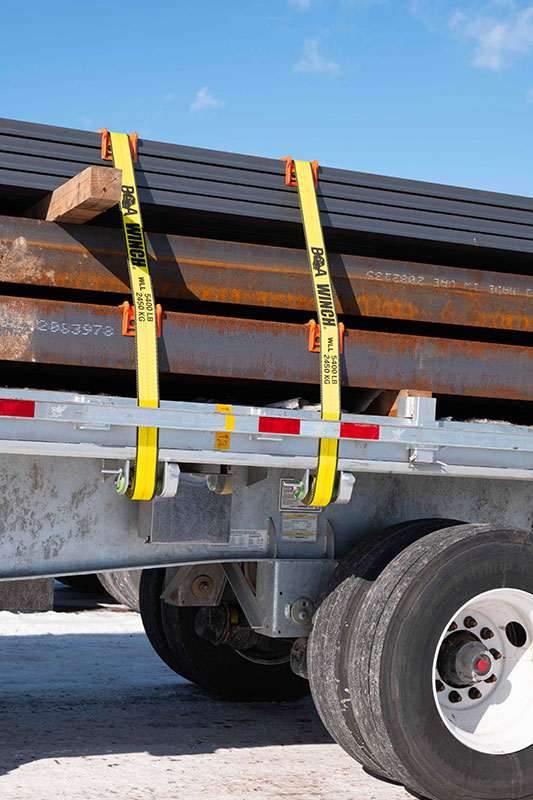

Le BOA WINCH® s’utilise avec tous les modèles de courroies standards

Straps

The BOA WINCH® can be used with all standard strap models up to 4" (10.2 cm) wide.

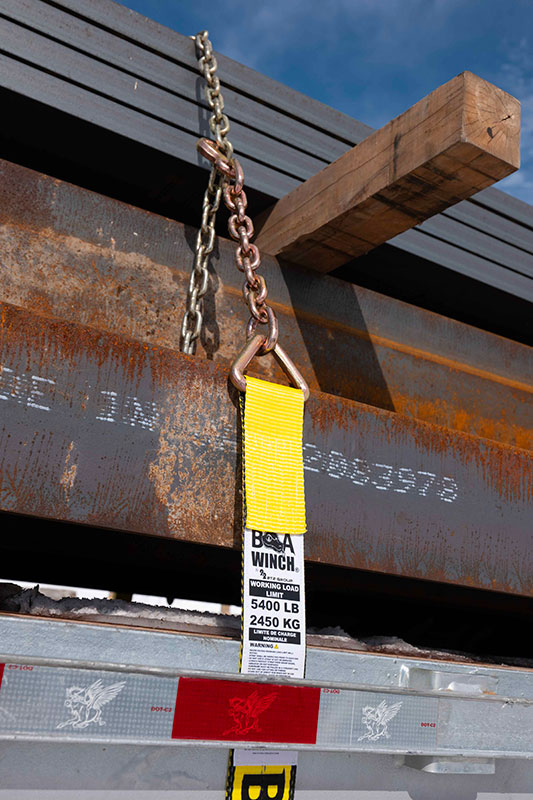

Le BOA WINCH® permet l’arrimage perpendiculaire des chargements au moyen de chaînes.

Chains

One of the many advantages of the BOA WINCH® is that it replaces the need for chain binders when used with our 3’ straps (BOA-S303-A1010). It allows perpendicular securing of loads using chains when required.

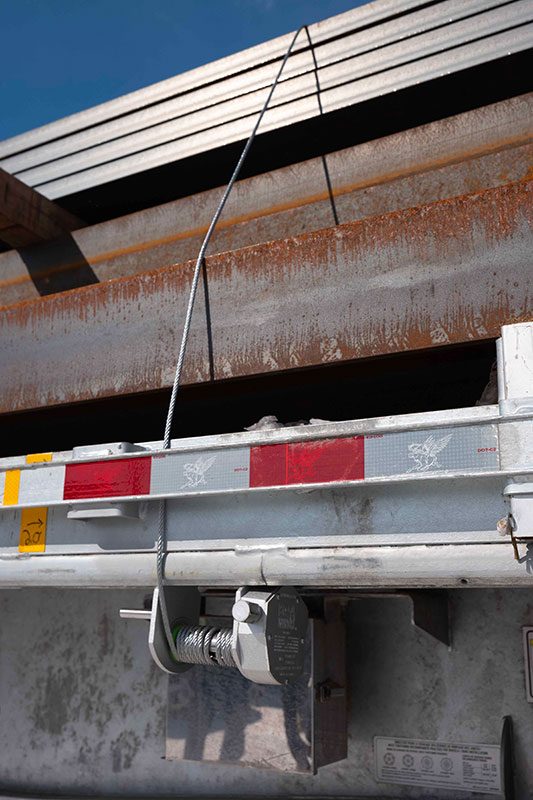

Le BOA WINCH® accepte les câbles d’acier.

Steel cables

The BOA WINCH® is compatible with cables of a diameter up to ¼ ’’ (0.635 cm).
It is possible to adapt it for larger cable diameters upon request.

A unique patented mechanism

The BOA WINCH® uses a worm gear for which the company has a worldwide patent. This revolutionary mechanism considerably reduces the effort required to securely tiedown a load.

As a result, because it allows an uniform tension and greater precision on all straps, regardless of the load, securing a load is much faster.

Compared to traditional winch bars, the BOA WINCH® system’s handle eliminates the risk of accidents related to strap kickback or winch bar accidents.

  • The superior mechanical efficiency of the BOA WINCH® is explained by the use of its gear system that multiplies the force thanks to its worm gear system at a ratio of 22:1.
  • BOA WINCH® are coated with Dacromet® to provide the best resistance against corrosion.
  • BOA WINCH® meet or exceed industry standards: WSTDA, Canadian Standard 905 and DOT standard.
  • The BOA WINCH® is offered in different models that adapt to any type of trailer using C or Double-L model rails.
  • BOA WINCH® are offered in silver color and are also available, on special order, in five other attractive colors: blue, red, yellow, green, army green.

C Frame Model

Compatible with C frame sliders

Compatible avec les rails en C

*Available colors:

|

*Colors other than silver (army green, green, blue, red and yellow) are only available through special order in minimum quantity of 100.

Le treuil d’arrimage BOA WINCH® STD-C-ZP
Couleur du treuil BOA WINCH® : vert armé (GA)

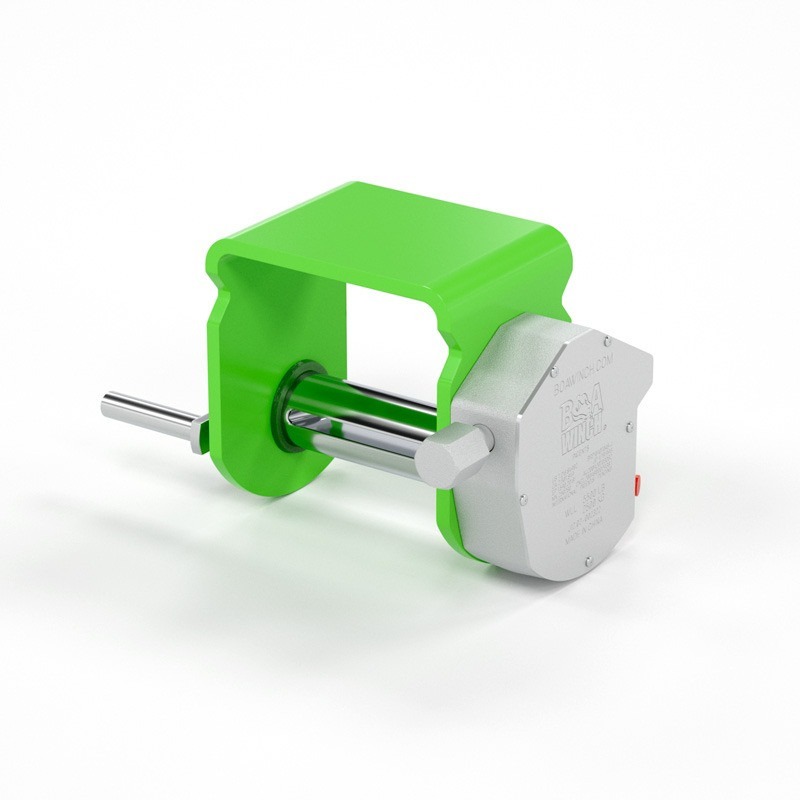

Couleur du treuil BOA WINCH® : vert (GR)
Couleur du treuil BOA WINCH® : bleu (BL)

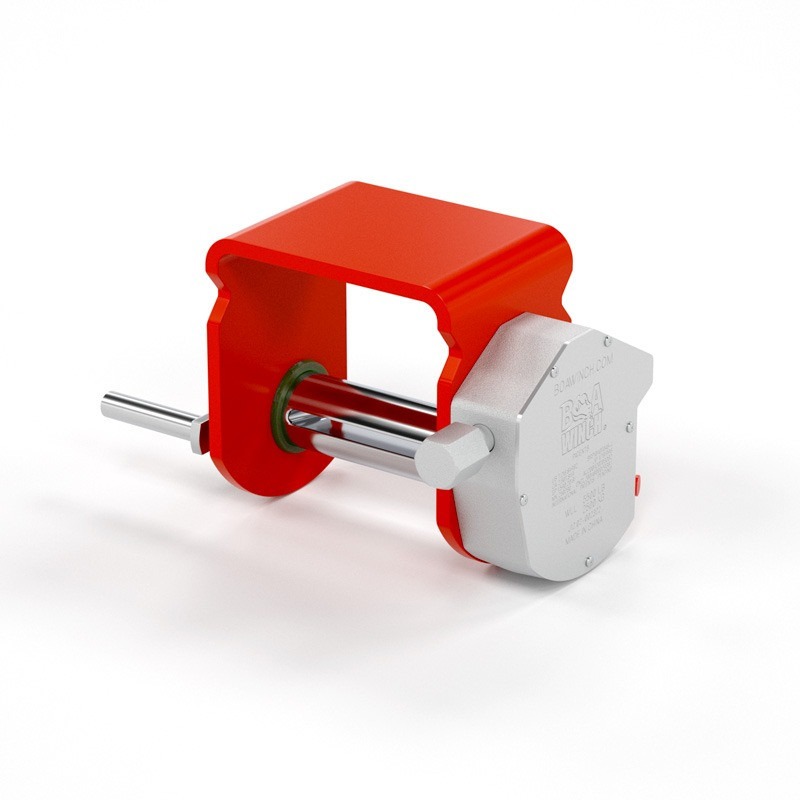

Couleur du treuil BOA WINCH® : rouge (RD)

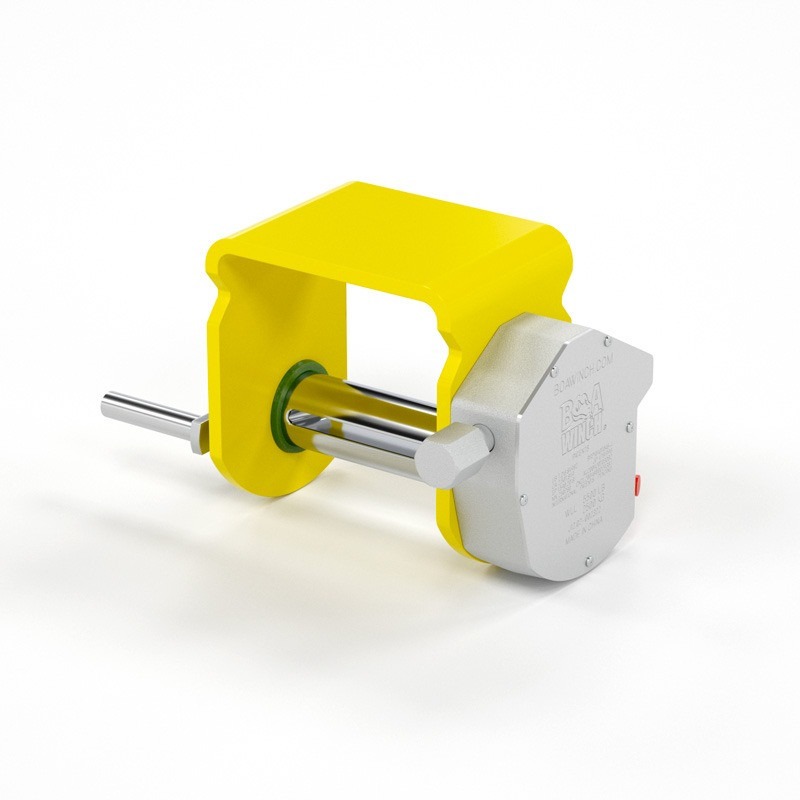

Couleur du treuil BOA WINCH® : jaune (YL)

Double L Model

Compatible with LL frame sliders

Compatible avec les rails double L

*Available colors:

|

*Colors other than silver (army green, green, blue, red and yellow) are only available through special order in minimum quantity of 100.

Le treuil d’arrimage BOA WINCH® STD-LL-ZP
Couleur du treuil STD Double L BOA WINCH® : vert armé (GA)

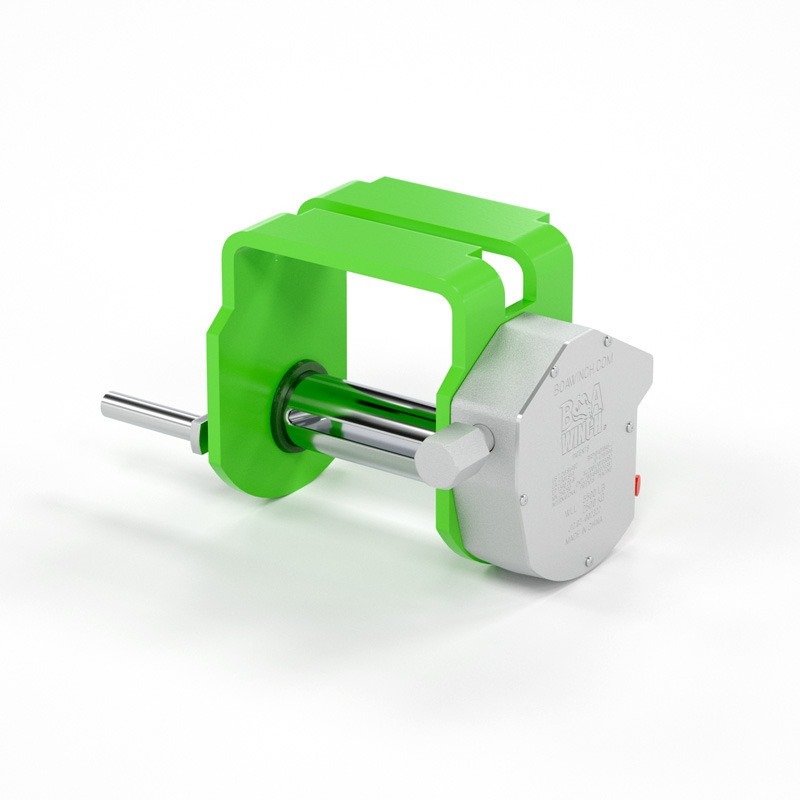

Couleur du treuil STD Double L BOA WINCH® : vert (GR)

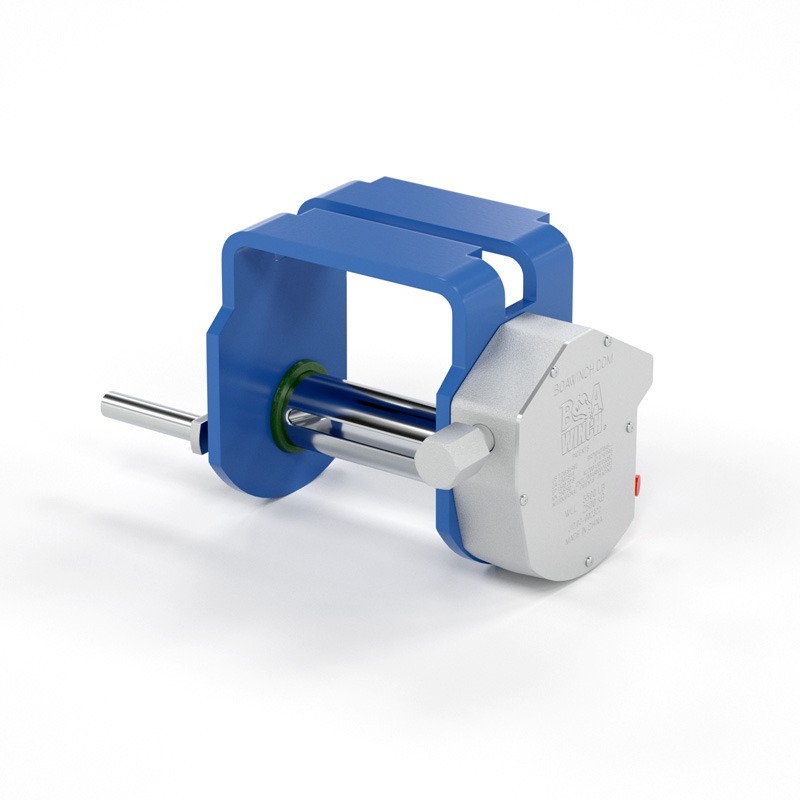

Couleur du treuil STD Double L BOA WINCH® : bleu (BL)

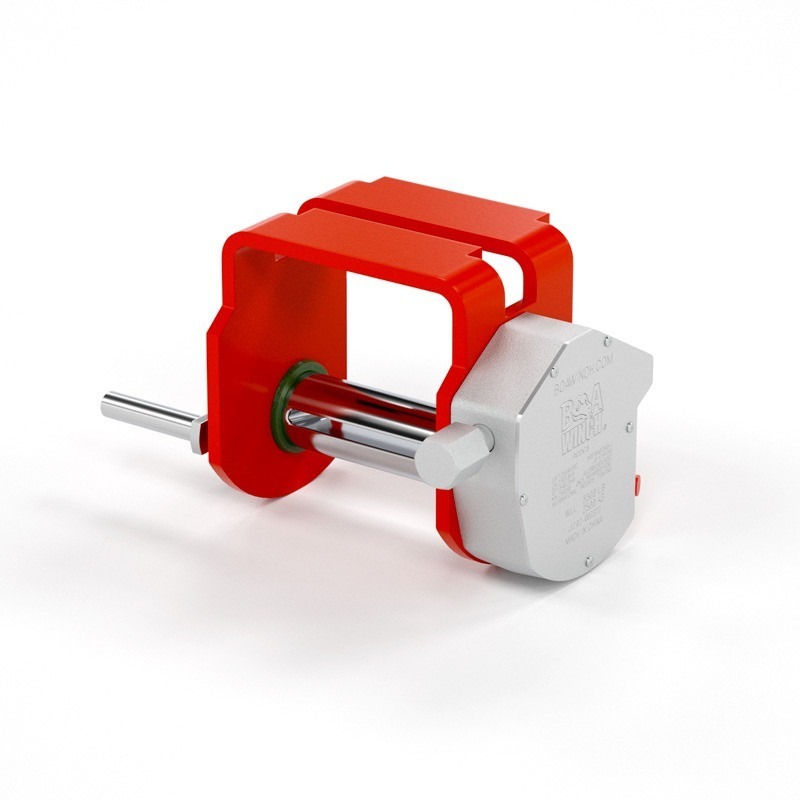

Couleur du treuil STD Double L BOA WINCH® : rouge (RD)

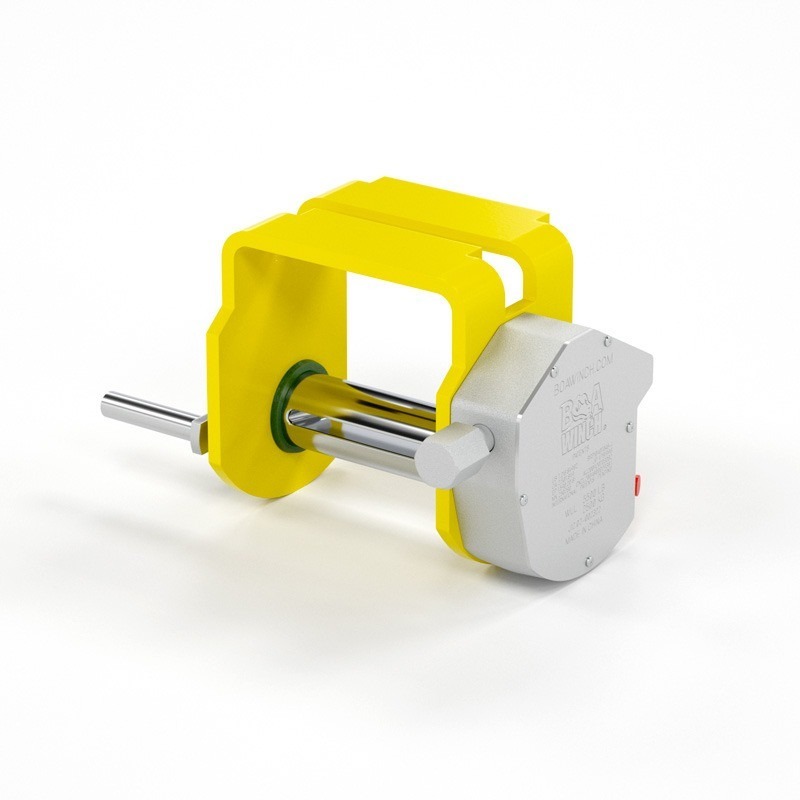

Couleur du treuil STD Double L BOA WINCH® : jaune (YL)
Research and development
Buy now

Technical specifications

MODELS BOA-STD-C-xx BOA-STD-LL-xx BOA-HPF-C-ZP BOA-HPF-LL-ZP

DIMENSIONS (W x H x D)
       INCHES
       CENTIMETERS


5.5 x 5.9 x 4.0
13,9 x 12,7 x 10,2


5.5 x 5.9 x 4.0
13,9 x 12,7 x 10,2


5.5 x 7.5 x 4.0
13,9 x 19,1 x 10,2


5.5 x 7.5 x 4.0
13,9 x 19,1 x 10,2

WEIGHT
       POUNDS
       KILOGRAMS


13.5
6,1


12.9
5,9


14.6
6,7


13.9
6,3

WORKING LOAD LIMIT (WLL)
       POUNDS
       KILOGRAMS


5500
2495

COLORS (xx)

SILVER (ZP)
BLUE (BL)*
YELLOW (YL)*
RED (RD)*
GREEN (GR)*
ARMY GREEN (GA)*
*available through special order

APPROXIMATE WINDING CAPACITY
       FEET
       METERS


27
8,2


30
9,1

COMPLIANCE

WSTDA, CANADIAN STANDARD 905, NORME DOT. ***
